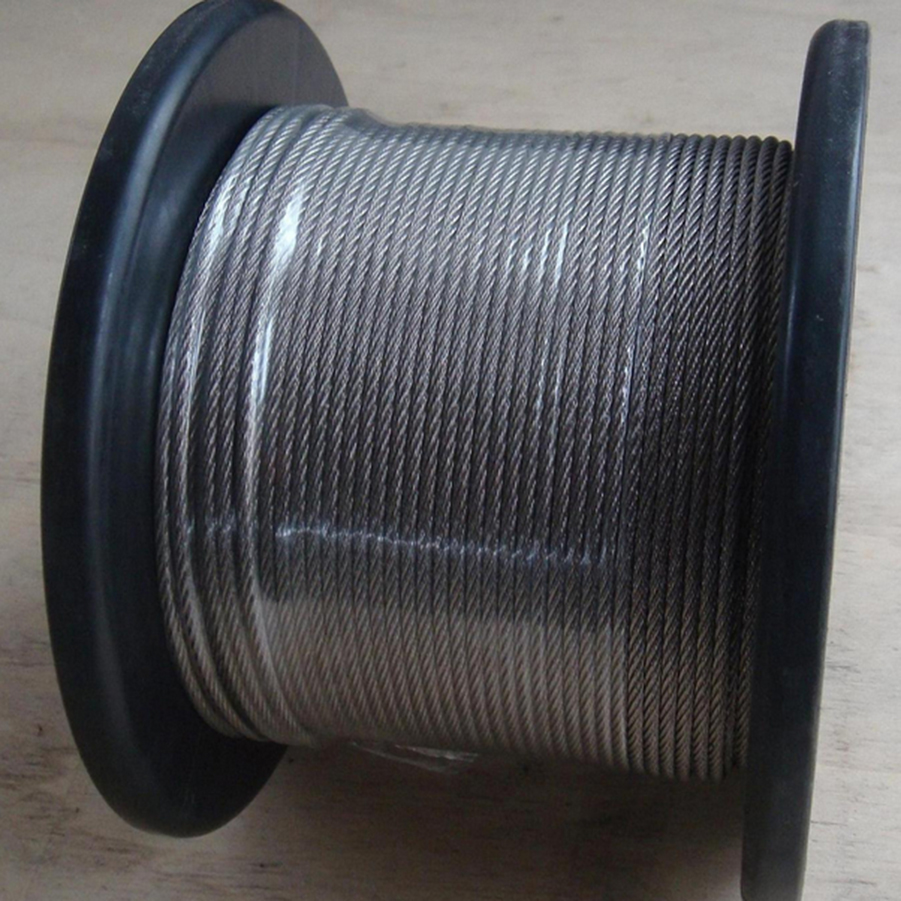

Stainless Steel Wire Rope 6X36SW IWRC

Wear on the wire surface of the outer strands of Stainless Steel Wire Ropes is caused by its contact and friction with the grooves of the pulley and drum under pressure. This phenomenon is particularly obvious at the contact part of the SS Wire Rope with the pulley when the hoisting load accelerates and decelerates, and the outer wire is ground into a flat shape.
Insufficient or incorrect lubrication, as well as the presence of dust and grit, can increase wear.
Wear reduces the cross-sectional area of the wire rope and thus the strength. When the outer steel wire wears up to 40% of its diameter, the wire rope should be scrapped.
When the diameter of the wire rope is reduced by 7% or more relative to the nominal diameter, the wire rope shall be scrapped even if no broken wires are found.
Stainless Cable Wire 6X36SW IWRC
The design of this structure makes the wire rope have good fatigue life.
6x36 is a flexible wire rope for general engineering.
This wire rope has a Warrington Seale construction.
6x36 has better breaking load than 6x19 construction wire rope.
6x36 wire ropes are available in FC (fiber core) or IWRC (independent wire core) for a wide range of applications.
Grade: AISI304 AISI316
