Brand: HWTR
Material: Stainless Steel
Place Of Origin: China
Packaging: plastic sppol; wooden spool; coil;carton
Productivity: 500tons/month
Transportation: Ocean,Land,Air,s
Place of Origin: CHINA
Supply Ability: 500tons/month
Certificate: ISO9001
HS Code: 73121000
Port: Shanghai
Payment Type: Paypal,D/A,D/P,T/T,L/C
Incoterm: FOB,CFR,CIF,EXW,DDP,DDU,Expres

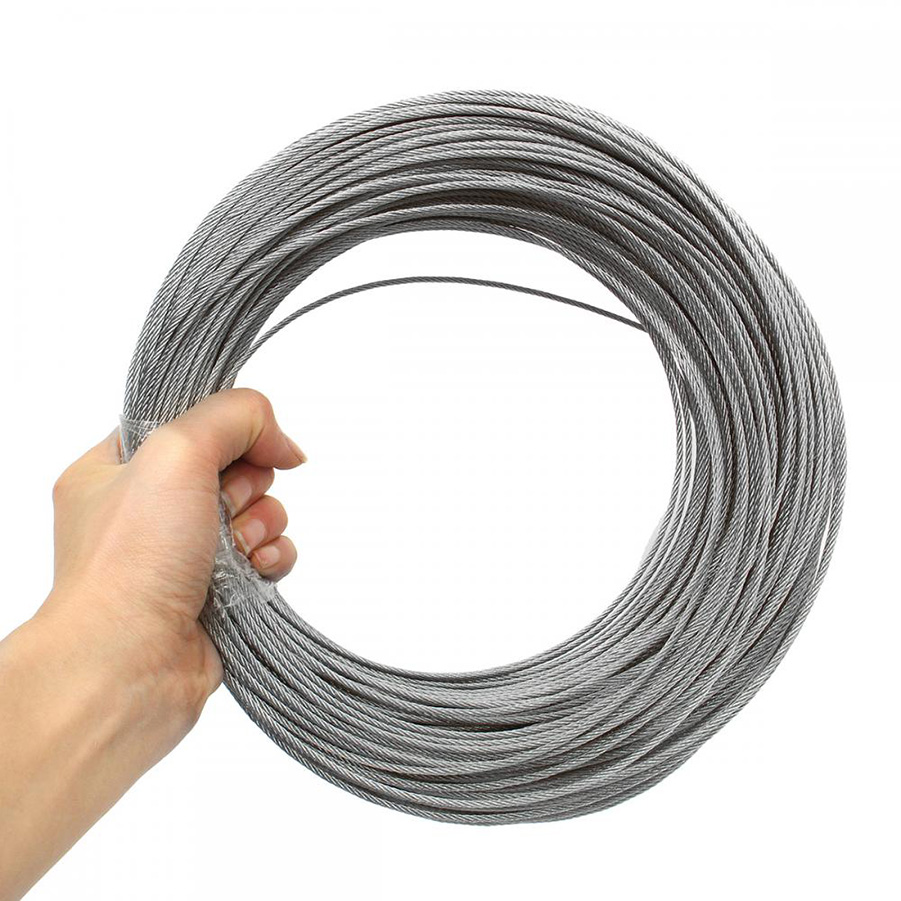

Stainless Steel Aircraft Cable refers to a structure made of at least two layers of steel wire or strands helically twisted around a center or core. Stainless Steel Wire Ropes are divided into multi-strand steel wire ropes and single-strand steel wire ropes. Stainless Steel Wire Rope refers to a Steel Wire Rope twisted with stainless steel materials. The national standard for Stainless Wire Rope is GB/T 9944-2015.
This classification of Stainless Cable Wire is classified according to structure. Its typical structures are: 1x3, 1x7, 1x19, 3x7, 6x7, 6x19(a), 6x19(b), 8x19. This twist characteristic is this
1. Point contact: The adjacent layers of steel wires in the strand are in point contact. Except for the central steel wire, the steel wires in each layer have the same diameter and are twisted in layers to form strands.
2. Line contact: The adjacent layers of steel wires in the strand are in line contact, and the steel wires of different diameters are twisted together at one time to form strands.
3. Surface contact: surface contact between adjacent layers of steel wires in the strand.
4. Point and line contact stainless steel wire rope: There are two contact modes of point and line between adjacent layers of steel wires in the strand. The strands are formed by stranding steel wires of different diameters in stages.
5. Special-shaped stainless steel wire rope: Special-shaped stainless steel wire rope is named after its cross-section is triangular, oval or fan-shaped.
6. Galvanized stainless steel wire rope: Galvanize the surface of the steel wire (or draw it after galvanizing), and then twist it to make a stainless steel wire rope.
7. Stainless steel wire rope twist direction: The so-called wire rope (or strand) twist direction refers to the spiral direction in which the strands (or steel wires in the strands) of the rope are twisted. Determination method: Place the rope (or strand) vertically and observe. If the spiral direction of the strands (filaments) is from left to right, it is left-twisted and can be represented by "". According to the twist direction of the strands and ropes, the steel wire rope is divided into: a Right-hand alternately twisted stainless steel wire rope: right-hand twisted rope, left-hand twisted strand b Left-hand twisted stainless steel wire rope: left-hand twisted rope, right-hand twisted strand
c Right-hand stainless steel wire rope: right-hand rope, right-hand strand
d Left-hand stainless steel wire rope: left-hand rope, left-hand strand
e Right-hand mixed-twist stainless steel wire rope: right-twist rope, some strands are left-twisted, and some strands are right-twisted
f Left-hand mixed-twist stainless steel wire rope: left-twist rope, some strands are right-twisted, and some strands are left-twisted
Product Categories : Stainless Steel Wire Rope > 1X7 Stainless Steel Wire Rope
